around1800 BCE–566 CE

Ancient Right Triangles

The Pythagorean Theorem and the Gou-Gu Rule

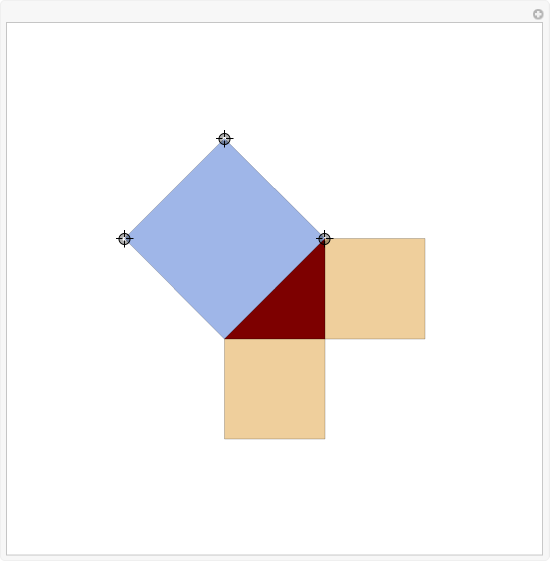

The Pythagorean theorem is one of the oldest and most important results in mathematics. The theorem states that if a triangle has one right angle, then the square of the longest side, called the hypotenuse, is equal to the sum of the squares of the lengths of the two shorter sides, called the legs. So if a and b are the lengths of the legs, and c is the length of the hypotenuse, then a2 + b2 = c2. The following is a simple geometrical proof by rotation; the area of the squares a2 and b2 is equivalent to the resulting square c2.

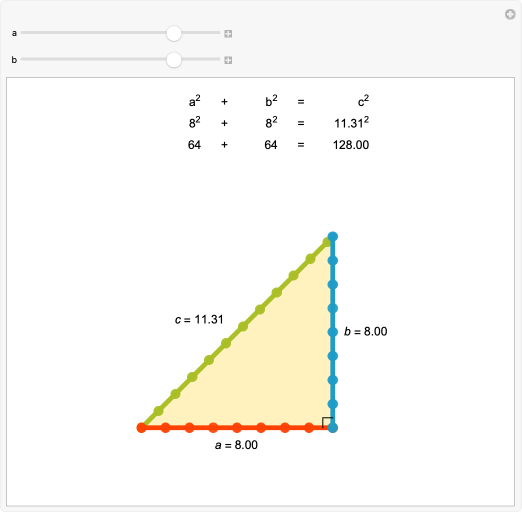

This relationship was known to the ancient scholars and builders of Babylonia, Egypt, China and India. While Pythagoras lived from 569–475 BCE, the result that now bears his name appeared as early as 1800 BCE in clay Babylonian tablets. The Pythagorean theorem was also known to early Chinese scholars and appeared in the sacred texts of ancient India related to altar building. This remarkable property of right triangles a2 + b2 = c2 was probably discovered by looking at the simplest case, the 3–4–5 right triangle:

Knowing that the right triangle obtained from three sticks of 3, 4 and 5 units of length has square sides measuring 32 = 9, 42 = 16 and 52 = 25, they were probably led to consider whether a similar relation to 32 + 42 = 52 was true of the sides of other right triangles. The simplest case to investigate was that of a right triangle with equal legs, a = b. In this case, the proof would easily appear from a square split into eight right triangles, as depicted in problems 10 and 11 in the Babylonian geometrical problem tablet:

Right angles are part of the most primitive experience of the world: gravity is vertical, and the horizon stands at right angles to it. No one knows how or when the Pythagorean theorem was first discovered, but it happened long before Pythagoras. Archaeologists have found the theorem on tablets in Mesopotamia dating from the first half of the second millennium BCE, a thousand years before his lifetime. It was already so well known then that it was being taught in scribal schools.

Three Babylonian tablets related to the Pythagorean theorem: the Inner Diagonal Tablet (the Pythagorean theorem in three dimensions), MS 3052 (mathematics of mud walls), Plimpton 322 (Pythagorean triples).

Egyptian builders knew how to create square corners with an astounding degree of precision, perhaps by using a technique that earned them the nickname rope stretchers among their Greek contemporaries. There is a hint about what that meant in this wall painting from the Tomb of Menna.

Facsimile from the Metropolitan Museum of Art. The original dates from 1400 BCE. The painting shows men measuring a field with rope with knots at regular intervals. They were probably using the rope to create right angles.

Rope stretchers used 3–4–5 triangles and the plummet, which are still in use by modern surveyors. Rope-stretching technology spread to ancient Greece, India and China, where it stimulated the development of geometry. Recall that geometry comes from two Greek words: geo means "Earth" and -metria means "to measure." So geometry was originally the art of earth measuring, what we nowadays would call topography.

Geometric diagrams related to the Pythagorean theorem and based on ancient ritual texts. See Vedic Fire Altar Rectangle Diagonal and Vedic Fire Altar Square Diagonal.

In India, right triangles appeared in the designs on Vedic sacrificial altars dating from as early as 1000 BCE. A collection of Vedic texts called the Śulbasūtras  (rules of the rope), dating from between 500 and 200 BCE, told how to construct these altars and how to enlarge them while retaining the same proportions. Enlarging the altar was a way of seeking protection from the god or gods, and getting the right response depended on keeping the exact proportions. The Pythagorean theorem does not appear in the manuals, but the writers seem to have been aware of it.

Diagrammatic demonstration of the Pythagorean theorem from the ancient text Zhoubi Suanjing.

In China, the Pythagorean theorem has been known for millennia as the Gou-Gu rule. The earliest extant Chinese text on astronomy and mathematics, Zhoubi Suanjing, is notable for a diagrammatic demonstration of the theorem. The figure used to prove the theorem in Zhoubi Suanjing is usually referred to as the hypotenuse diagram, or xian tu. It is ascribed to Zhen Luan (535–566), a Chinese mathematician and astronomer who mentions the diagram while discussing Zhao Shuang's third-century commentary of Zhoubi Suanjing. The following is a dissection proof of the Gou-Gu rule, often described as the process of piling up the rectangles.

Another important mathematical text from ancient China is The Nine Chapters on the Mathematical Art, a book composed by several generations of scholars from the 10th–2nd century BCE. Entries in the book usually take the form of a statement of a problem, followed by the statement of the solution and an explanation of the procedure that led to the solution. For example, problem 13, the broken bamboo problem, considers an upright bamboo stalk 10 chi high that is fixed at the base and broken partway up its height. While the rooted portion below the break is left in place, the upper fragment of the stalk is bent over at the break point until it touches the ground 3 chi to the right of the base. The solution to the problem involves the application of the Gou-Gu rule.

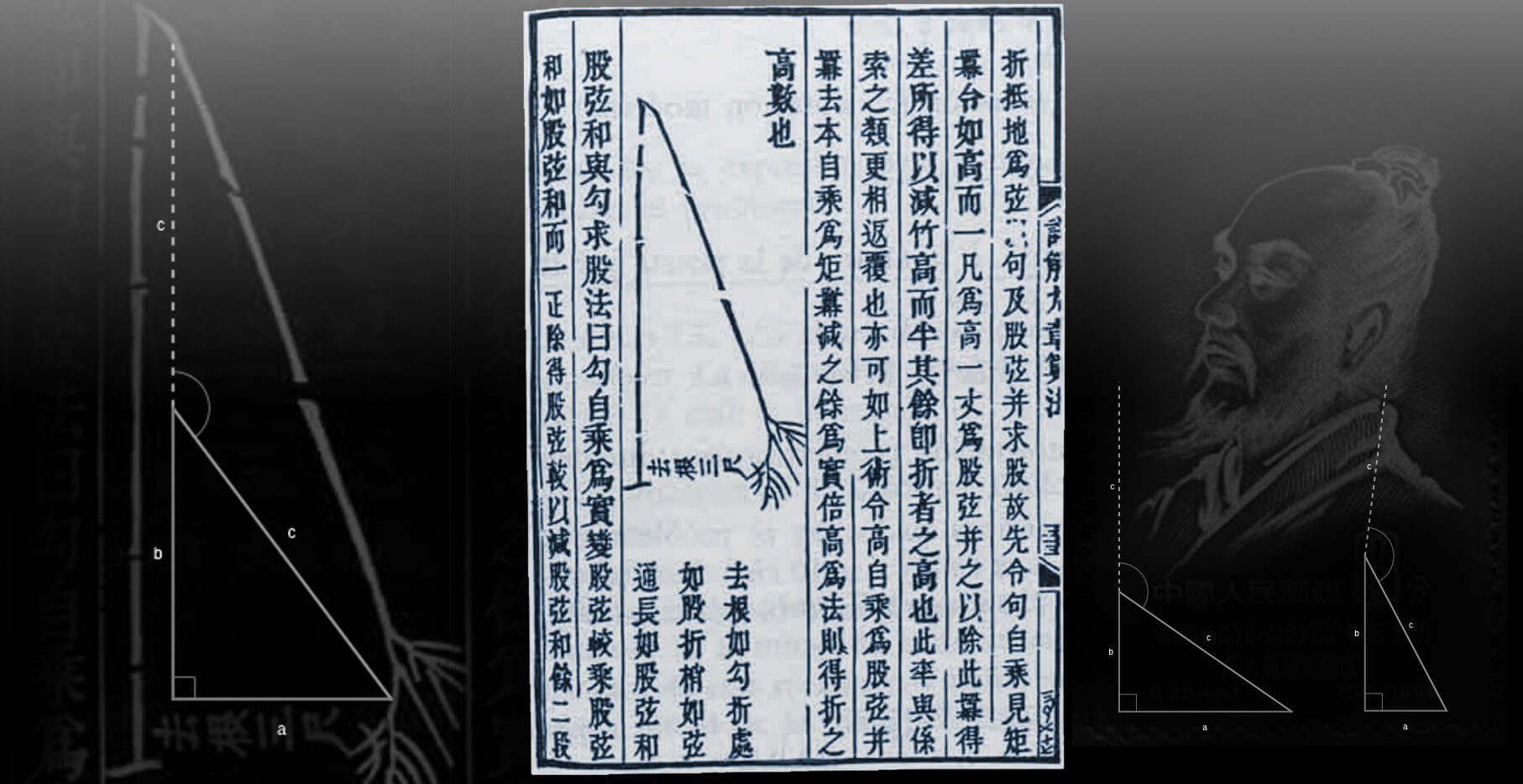

The accompanying figure to the broken bamboo problem first appeared in Yang Hui's 1261 work A Detailed Analysis of the Mathematical Methods in the Nine Chapters.

The bamboo problem also appears in the ninth-century Sanskrit mathematical classic The Ganita-sara-samgraha by Mahavira. It reappears again in the first printed book to accompany mathematical problems with illustrations, Filippo Calandri's 1491 Aritmetica.

Illustration of the broken tree problem. At what height should a tree measuring 50 units of length be cut so that its tip lands on the opposite side of the stream at a distance of 30 units? The solution is 16 and requires the use of the Pythagorean theorem, 302 + 162 = 342.

Similar geometrical problems are found in Bhāskara II's treatise on mathematics, written in 1150.

The peacock problem from the Lilāvatī of Bhāskara II (1114–1185). The problem illustrated here is based on a manuscript that dates from 1650. Its solution involves applying the Pythagorean theorem.
Babylonian Mud Wall Tablet Babylonian Inner Diagonal Tablet Babylonian Square Root of 2 Tablet Berlin Pythagorean Theorem Papyrus Plimpton 322 Vedic Fire Altar Rectangle Diagonal Vedic Fire Altar Square Diagonal Euclid's Elements Ptolemy's Quadrilateral Theorem Zhoubi Suanjing Pythagorean Theorem Proof Ibn Qurra's Pythagorean Theorem Proofs Lilāvatī of Bhāskara II

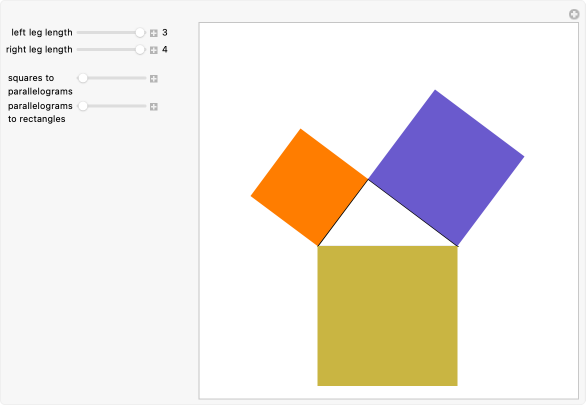

In the West, the most widespread proof of the Pythagorean theorem is found in Book I, Propositions 47 of Euclid's Elements, written around 300 BCE. This is a remarkably clever proof involving the contents of Book I only. Novel proofs of the theorem, including ibn Qurra's proofs, have been discovered from time to time ever since. With hundreds of different proofs, the Pythagorean theorem has more published proofs than any other theorem!
